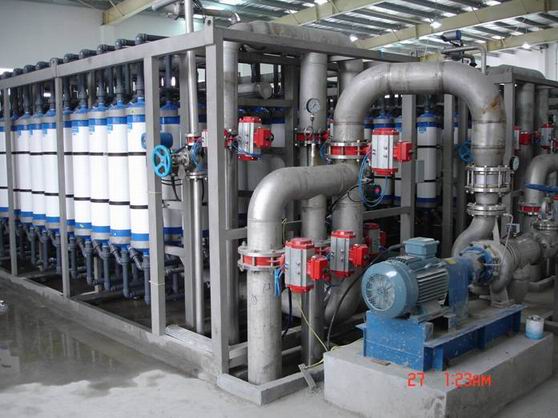

Ultrafiltration Plant is used in both pretreatment and post treatment of water. We Supply and install custom made ultrafiltration Water systems (UF Systems) up to 10 m³/Hr, units can be semi or fully programmable and PLC controlled. These are extensively used in industrial water and wastewater treatment applications. These units are next generation equipment, designed to minimize investment cost and maximize performance meeting stringent environmental protection requirements.

Using hollow-fiber Ultrafiltration Membranes, we can engineer ultrafiltration package system, ultrafiltration pilot plant and turnkey Ultrafiltration plant for Low (< 5 NTU), Medium (< 20 NTU) and High (< 50 NTU) turbidities. Our standard series of Ultrafiltration systems are modular units fixed on a skid frame (Powder coated MS or SS) fitted with inlet and outlet and product water connections. There are various optional components are available on request that can added as per clients' requirements.

Ultrafiltration Process :-

Ultrafiltration is another type of membrane filtration, which is pressure driven water filtration process. In ultrafiltration process membrane pore size plays important role; feed water is pressed into modules through pump, depending upon the pore size of membranes contaminants are rejected and filtered water is taken out in storage tank or further sent as RO feed water.

In water treatment, ultrafiltration is utilized in two different operational modes such as Dead-End and Cross-Flow. In Dead-End ultrafiltration process, without circulation overall quantity of feed water is pressed through the membrane module; whereas, in Cross-Flow process the feed water passes parallel to the membrane face, one part is passed through membrane and other part is re-circulated to create turbulences over the membrane.

Ultrafiltration System Applications :-

Effluent Treatment Recycle,

Sewage treatment Recycle,

Surface Bore Water Filtration,

Well Water Filtration,

Municipal Water Filtration,

Petro Chemical Waste Water treatment,

RO Feed Water,

Paint Waste Water Treatment,

Oil Removal and Oil Refining Process.

Ultrafiltration System Operation Sequence :-

Filtration,

Re-Circulation,

Backwash,
